BT-3600-KS1

  • Home
  • Products
  • According Function
  • Vertical Balancing Machine

Products

  • Vertical Balancing Machine
  • Horizontal Balancing Machine
  • Automatic Balancing Machine
  • Precise Instrument
  • Sensors

FEATURES:

  • Accuracy, Stable, Robust
  • High Precision Chuck  Module
  • Standard Rotor Calibration
  • Single/Dual/Triple Planes
  • Rotor, Metal Case, Magnetics
  • Add or Remove Unbalance
  • Servo Motor Driving
  • Go/NoGo Auto Decision
  • Fast USB 2.0 Plug and Play
  • Low Cost, High Performance
  • Graphical Radar Diagrams
  • High-precise Measurement






  • Standard Rotor Calibration​​-National Traceable Calibration
  • ​ISO1940 Unbalance-International Unbalance Standard
  • Multiple Purpose Tools​-Tool kits for different work-piece​
  • High Throughput-Accelerate mass production line​
  • Add(+) or Remove(-)-Different correction methods

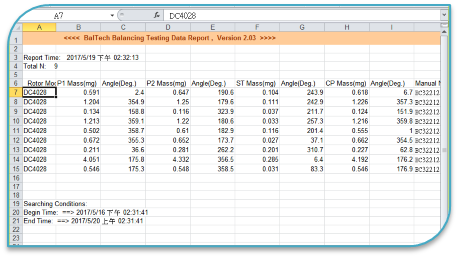

  • Excel format Data Report-Sharing reports more flexible
  • Go/NoGo Auto Decision-Avoid human error, zero failure

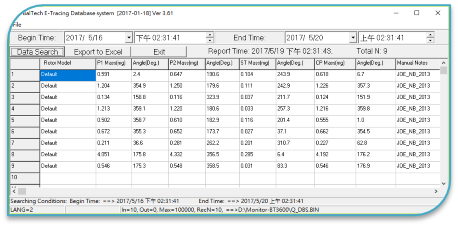

  • On-line data-base, SPC-Record and generate reports
  • Environmental Monitoring-Online monitoring environments​
  • Noise Spectrum Analyzer-Spectrum give more messages​




  • Standard Rotor Calibration​​-Check and verify machines anytime
  • ​Best tool for verification-Standards check anywhere, anytime
  • Precise, Robust collet-Highly Accurate collet, < 1.0 um
  • Wide range collet, 1.2–3.2mm-Measuring work-piece more flexible
  • Fan metal case Q.C.-Raw materials unbalance I.Q.C.
  • Expanding  Collet  module-Enhance instrument functions
  • Graphical Radar Display-User friendly interface
  • Online help-No training cost, online coach
  • Multi-Language-World-wide HMI interface
  • Single/Dual/Triple radar-Flexible, quick, easy production  ​

左右滑動看表格
BT–3600-KS1 Advantage Characteristics
Unbalance  detection Single/Dual/Triple Units display ug/mg/g/ kg
Graphical  HMI Radar Diagram Measuring mode Precise / Fast
Multi-language English/Chinese Clay timer alert Yes
Operating System Win7/8/10 Auto components Yes
OK/NG auto decision Yes Standard rotor verify Yes
Noise monitoring Yes Add or removing unbalance Yes
Auto positioning Yes ISO 1940 Calculator Yes
Spectrum analyzer Yes Excel  data format export Yes
Parameter file  system Yes Online database system Yes
RS232  data output (option) Chuck operation counter Yes
Counter and statistics Yes Last result radar diagrams Yes


左右滑動看表格
BT-3600-KS1 Hardware Specifications
Suitable  fan  size (work-piece) 1.2 CM – 8.0 CM (8020)
Type of unbalance detection single/dual/triple planes measurement
Maximal fan  weight (work-piece) < 50.0 gram
Maximum measuring speed 2,100 - 5,000  (rev/min, RPM)
Resolution of rotating speed < 2%
Fan shaft diameter range 1.2 mm – 3.2mm
Automatic positioning Server motor control
Reference position indicator Linear laser indicator
Servo motor and driver < 580.0 Watt. (AC servo)
Controller connection type USB 2.0 Plug and Play
External communication interface RS232 (option)
Mechanical  size (L x W x H) 300.0 x 265.0 x  230.0 (mm)
Weight of  balancing machine < 30.0 Kg
Power requirement 190 - 250V (Single phase  , 50 or 60Hz)
Air source pressure  requirement 5.0 – 6.0 Kg/cm^2
Environmental temperature 10 – 55 degree C
Environmental  humidity 25% - 80%
